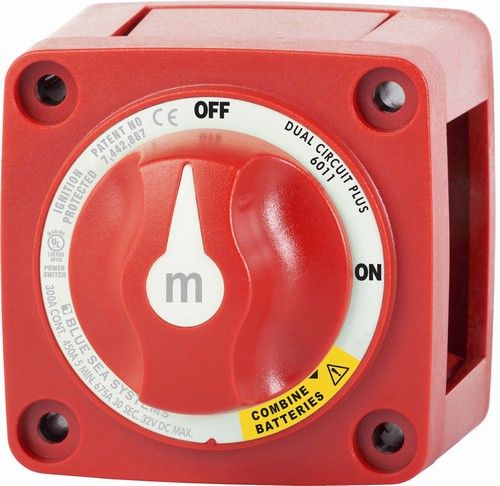

SWITCH BATTERY M DUAL CIRC. PLUS — K0606011 TREM
Price:
€93.06
-
Code:K0606011 TREM
71.76x71.76 x77.94 mm
| Specifications | |

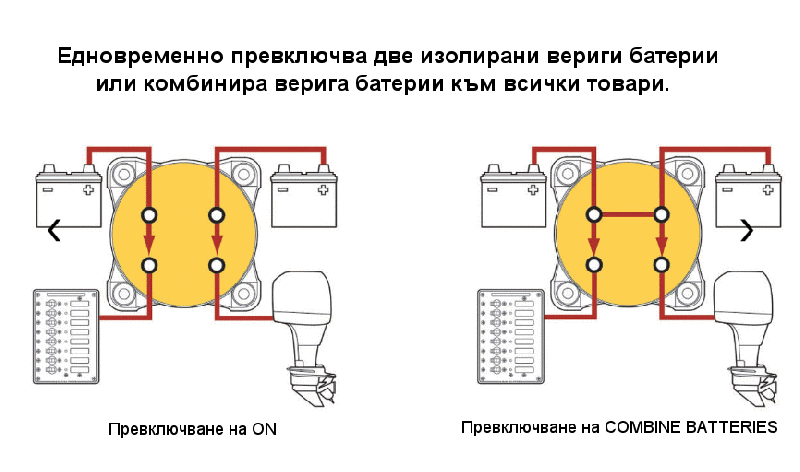

| Switch Type | Dual Circuit Plus |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 30 sec | 675A per circuit |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |

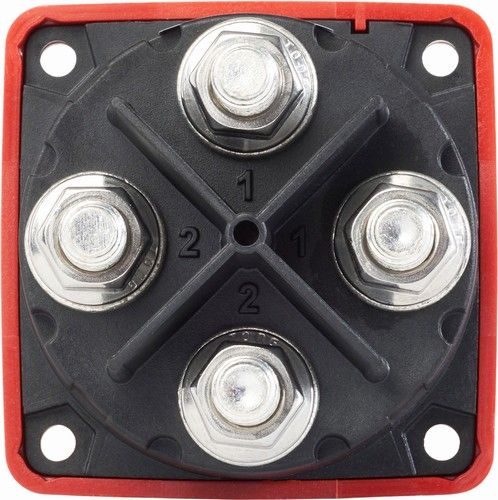

| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 0.80lb (0.36 kg) |
| File | Info |
|---|---|
 Switch_Knob | [PDF, 103.64 KB] |
