SEA-DOO/CAN-AM

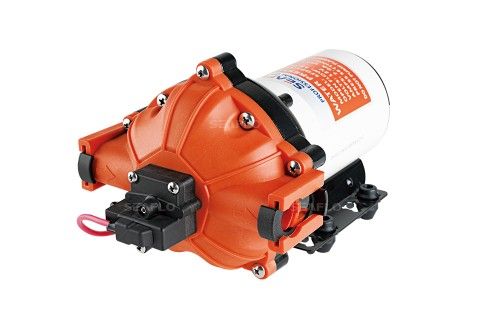

DIAPHRAGM PUMP 12V SERIE 52 — SFDP104006052
Price:
€132.94
260.01лв.
-
Code:SFDP104006052
| STANDARD PUMP CONFIGURATIONS | |
| Model | SFDP1-040-060-52 |
| Voltage | 12V |
| Open Flow（GPM/LPM） | 4.0 / 15.0 |
| Control Type | Switch |
| Max Draw | 13.0A |
| Shut-off Pressure（PSI/BAR) | 60 / 4.2 |
| Valves | EPDM |
| Diaphragm | Santoprene |
| Ports | QUICK ATTACH |
| Wire Connections | 2-Pin/Leads |
| PUMP | |
| Type | 5 Chamber positive displacement diaphragm pump, self priming, capable of being run dry |
| Control Type | Pressure switch |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure | Shut-off Pressure 60 PSI ：48 PSI ±5 PSI (±0.3 bar) |
| Shut-off Pressure 70 PSI ：56 PSI ±5 PSI (±0.3 bar) | |
| Inlet/Outlet Ports | QUICK ATTACH |
| Weight | 5.9 lbs (2.7 kg) |
| MOTOR | |
| Leads | 14 AWG, 13" (33 cm) long with 2-Pin connector / Leads |
| Duty Cycle | Continuous |
| Max.Amp Draw | 18.0 A |
| Fuse | 27.0 A |
