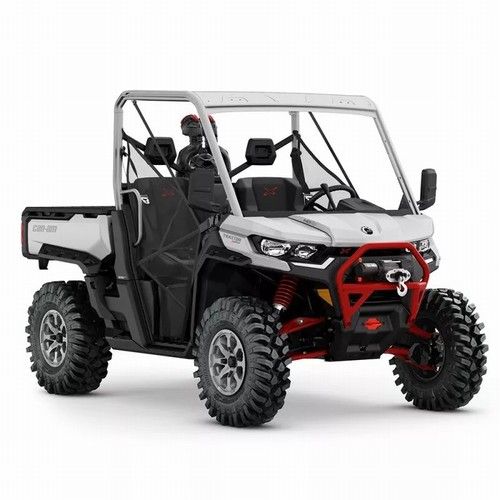

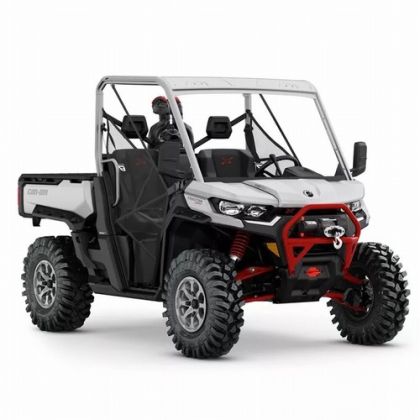

TRAXTER X mr HD10 CE — 8YSN CAN-AM
-
Code:8YSN CAN-AM
PACKAGE HIGHLIGHTS
• Smart-Lok front differential
• Strategically positioned engine air intake and CVT inlet / outlet
• Brake holding mechanism
• VERSA-PRO bolster bench seat, reinforced seat skin featuring X package trims and adjustable driver seat
• 7.6 in. digital display with keypad
• 64 in. wide with Arched A-arm
• LED Signature
• 30 in. XPS Swamp Force tires
• 4,500 lb (2,014 kg) Relocated winch
• Heavy-duty front steel bumper
• Aluminum rock slider
• HMWPE full skid plate
• Horn with carling
• Left and right sides EC approved mirrors
-
Engin type:HD10 - 82 hp / 69 lb-ft, Rotax® 976 cc, V-twin, liquid cooled with strategically positioned engine air intake
-
Fuel Delivery System:Intelligent Throttle Control (iTC™️) with Electronic Fuel Injection (EFI)
-
Transmission:PRO-TORQ CVT with Quick Response System (QRS), Electronic Drive Belt Protection, lower gearing ratio and high airflow ventilation with strategically positioned CVT air intake and exhaust; Extra-L / H / N / R / P
-
Drive Train:Selectable Turf Mode / 2WD / 4WD TRAIL / 4WD MUD with exclusive Smart-Lok
-
Driving Assistance:CVT Engine Braking • ECO™ / ECO™ Off / Work modes • Speed Limiter
-
Power Steering:Dynamic Power Steering (DPS)
-
Speed category:N/A km/h
-
Front Suspension:Arched double A-arm with swaybar / 12 in. (30.5 cm) suspension travel
-
Front Shocks:Twin tube gas charged shocks
-
Rear Suspension:Arched TTA with external sway bar / 12 in. (30.5cm) suspension travel
-
Rear Shocks:Twin tube gas charged shocks
-
Front & Rear Tires:XPS Swamp Force 30 x 9/11 x 14
-
Wheels:14 in. (35.6 cm) cast-alumium
-
Front brakes:Dual 220 mm disc brakes with hydraulic twin-piston calipers
-
Rear Brakes:Dual 220 mm disc brakes with hydraulic twin-piston calipers
-
Cage:Profiled cage • ROPS approved
-
Dry Weight:792 kg
-
Dimensions L x W x H:328.6 x 162.6 x 208.3 cm
-
Wheelbase:211.5 cm
-
Ground Clearance:38.1 cm
-
Cargo Box Dimensions:96.5 x 138.4 x 30.5 cm
-
Cargo Box Capacity:454 kg
-
Tailgate Load Capacity:113.4 kg
-
Towing Capacity:1134 kg
-
Payload Capacity:680 kg
-
Storage Capacity:61.3 L
-
Fuel Capacity:40 L
-
Person Capacity:3
-
Gauge:7.6" (19.3 cm) wide digital display with keypad
-
Battery:12V/30A
-
Instrumentation:DC outlet (10-A) • USB Port (10-A) x 2
-
Magneto:650 W
-
Lighting:Front lighting output 140-W • LED Signature • LED tail lights
-
Winch:Relocated 4,500 lb (2,041 kg) winch with synthetic rope and roller fairlead
-
Seat:VERSA-PRO bench seat with passenger seats flipping up, underside hooks, reinforced seat skin
-
Steering Wheel:Adjustable tilt steering
-
Protection:Heavy-duty front steel bumper • HMWPE full skid plate • Aluminum rock sliders • Mudguards
-
Hitch Type:2-in hitch receiver
-
T-Cat Features:Brake holding mechanism
